SPECIFICATIONS
Brand Name: ZWO
Origin: Mainland China
Type: Monocular
Product Description

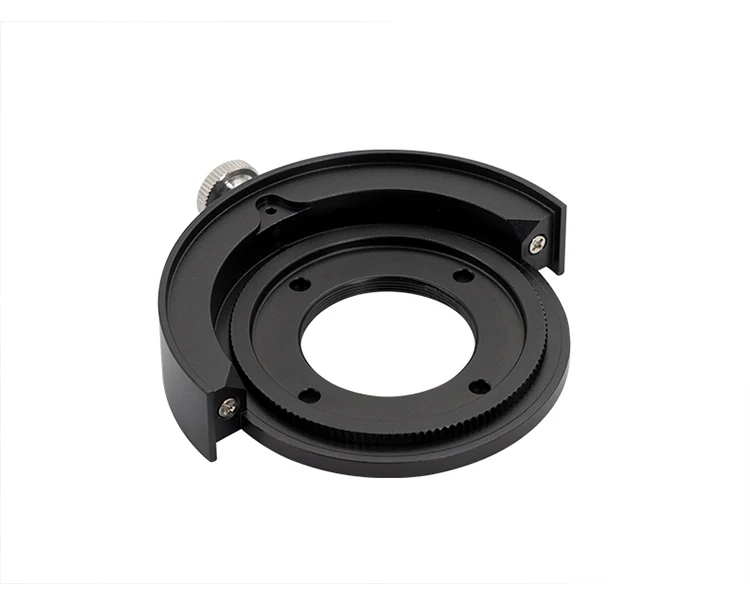

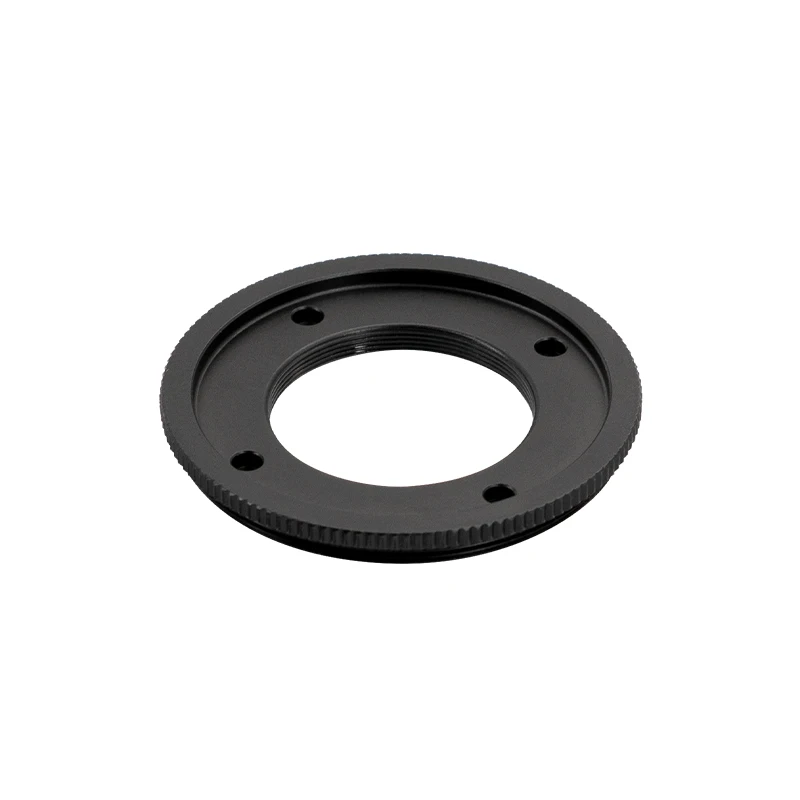

The filter adapter ring that allows you to use the filter with a smaller filter thread size.
No need for buying another set of filter drawers, the 2”-1.25”filter adapter ring will help you directly fit the 1.25”filter onto 2” filter drawer or filter wheel.
Supported list:
ZWO 5×2”EFW
ZWO 7×2” EFW
ZWO filter drawer series, including M42 filter drawer and M52 filter drawer

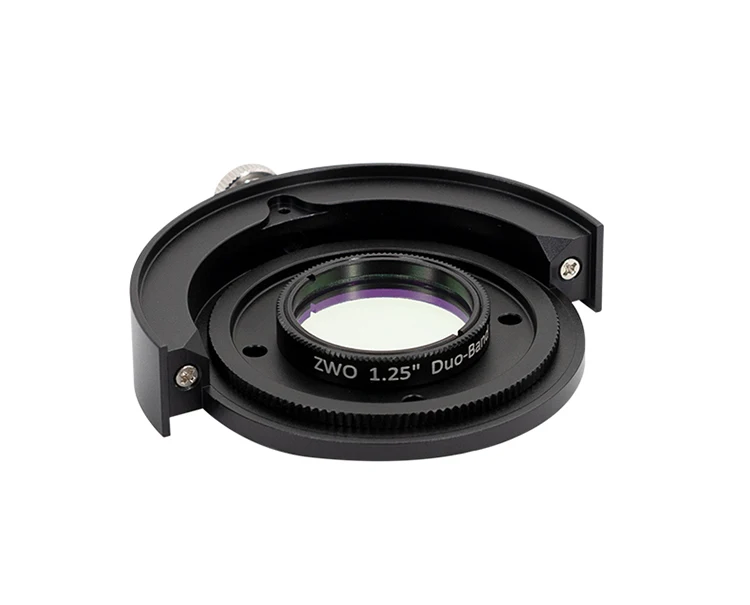

The effect when connecting 2”filter drawer:

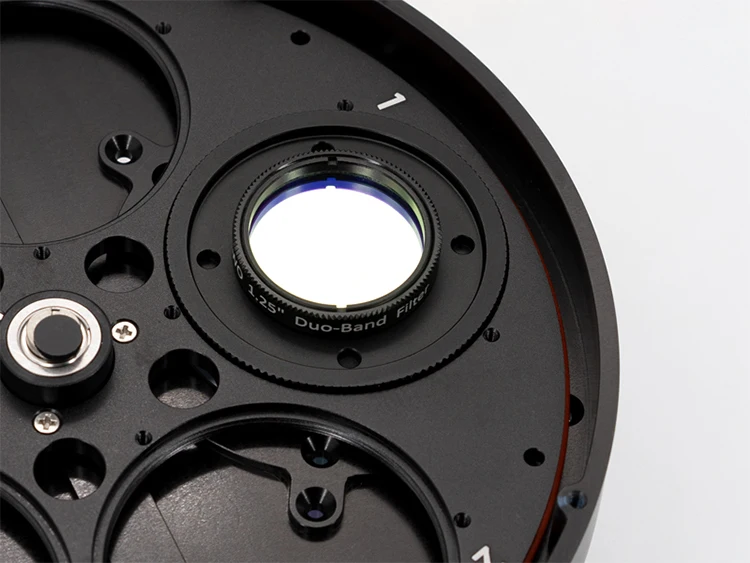

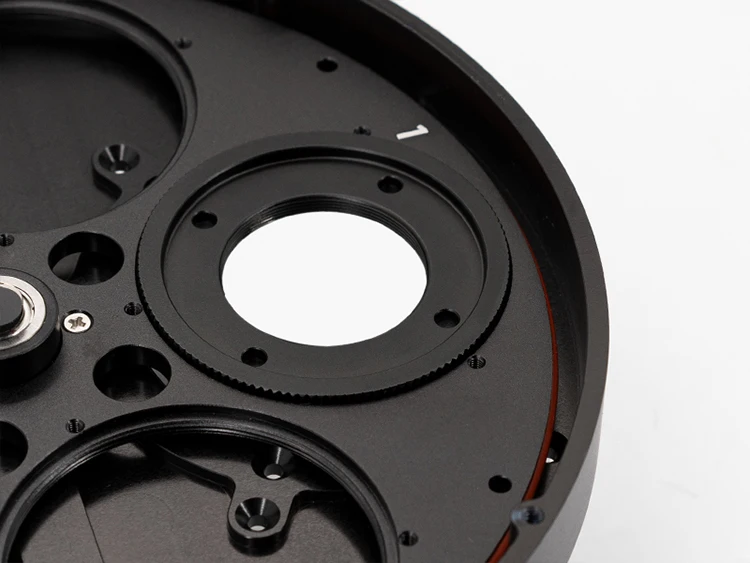

The effect when connecting 2”EFW:
We recommend you use ASI533, ASI183, ASI294 and ASI1600 with this filter adapter ring since cameras with bigger sensors may lead to vignetting when matching the 1.25” filters.
Connecting drawing:

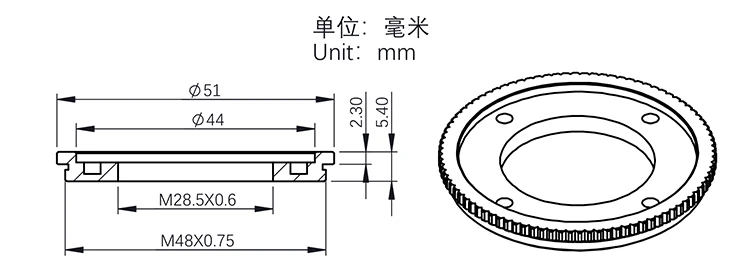

Mechanical drawing:
