SPECIFICATIONS
Brand Name: ZimKyfa
Choice: yes
Gold connectors: W21.8-14;CGA320
Hign-concerned Chemical: None
Length of hose: 1.5 meters
Origin: Mainland China
Package including: According to your option

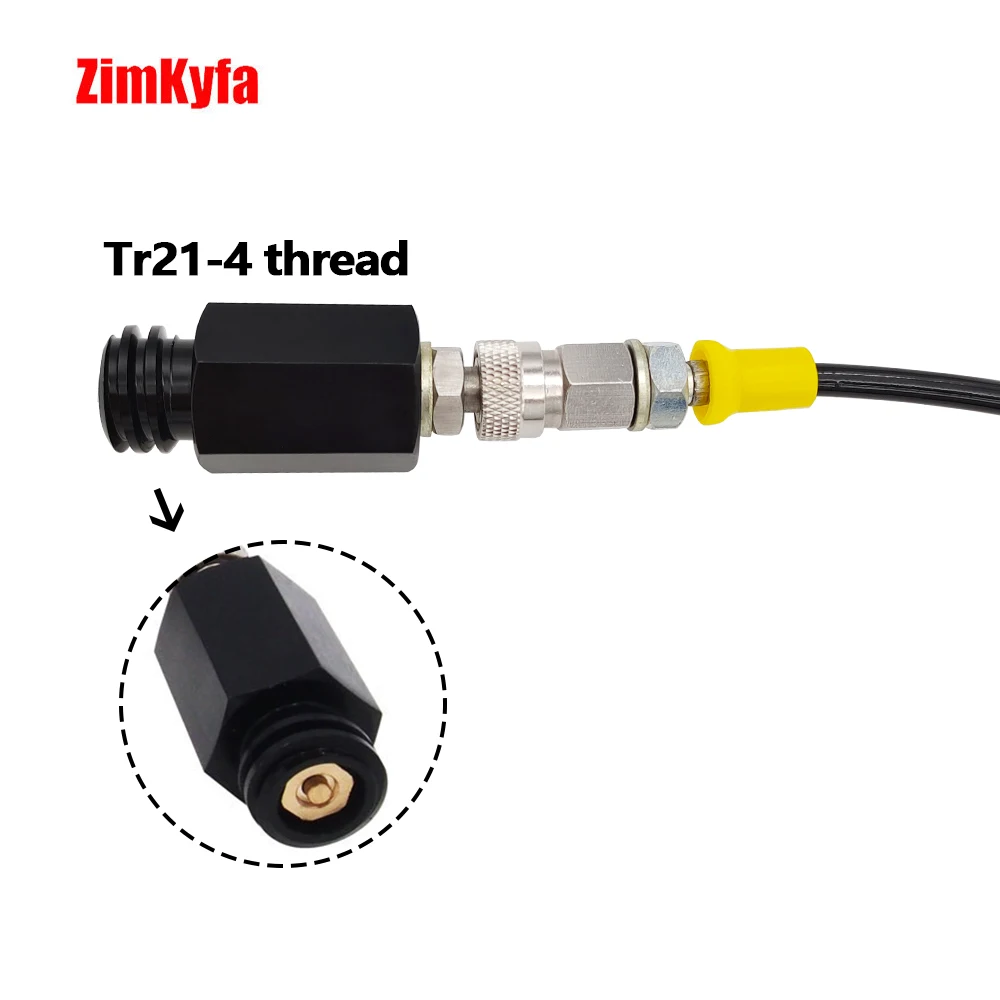

Quick disconnect: to Tr21-4 thread Soda machine
Type: Air system
semi_Choice: yes

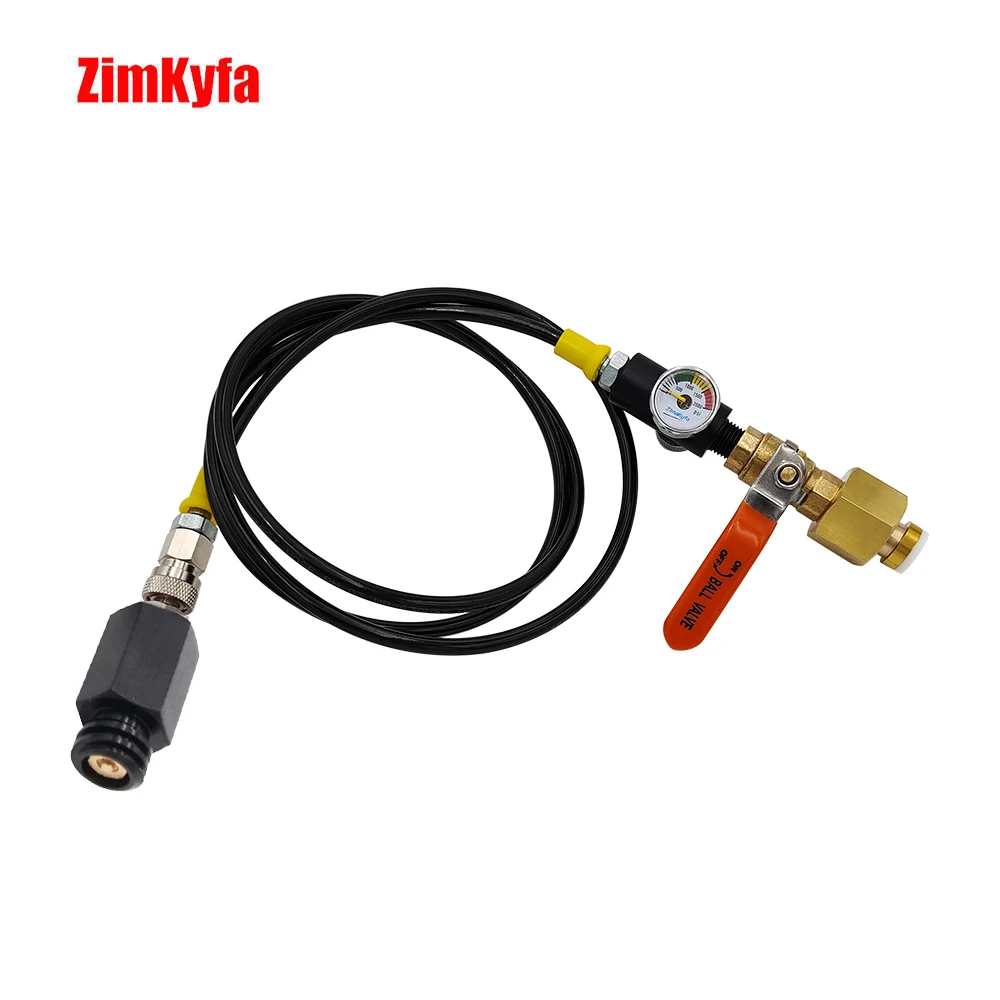

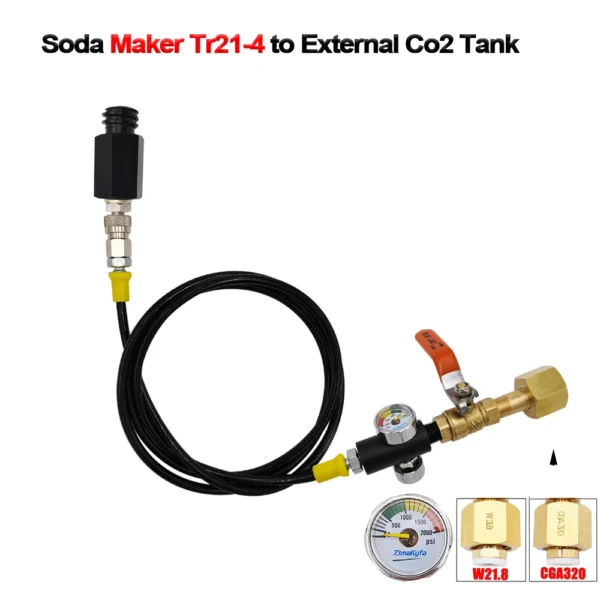

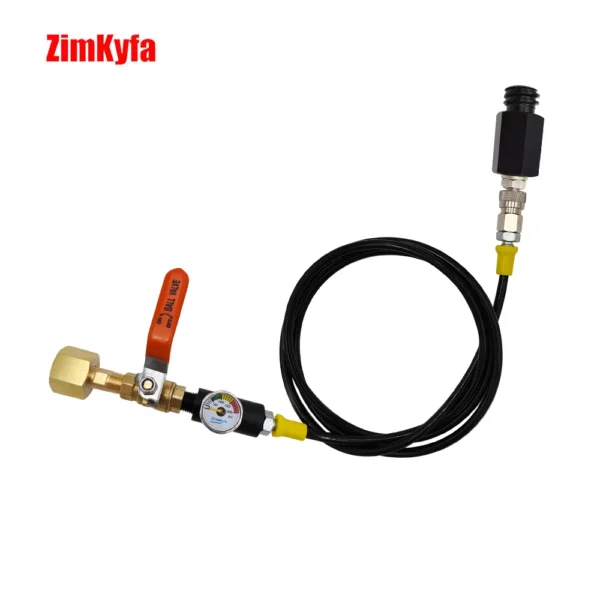

For Soda Stream Tr21-4 Soda Machine to External CO2 Cylinder With Flow Control Ball Valve 1.5 Meters Hose , 2000psi Gauge ,Bleed Valve.
Package including: According to your option!
This item can connect your W21.8-14,CGA320 threaded Co2 tanks to your Soda Stream Tr21-4 threaded machine directly and you no need to refill your soda cylinder anymore but still can make soda water yourself at home as well,it has a ball valve as controller to adjust CO2 flow if you only want suitable CO2 in water, a soft and durable 150cm(1.5meters) length hose and quick disconnect.
Please check your tank thread before making order.

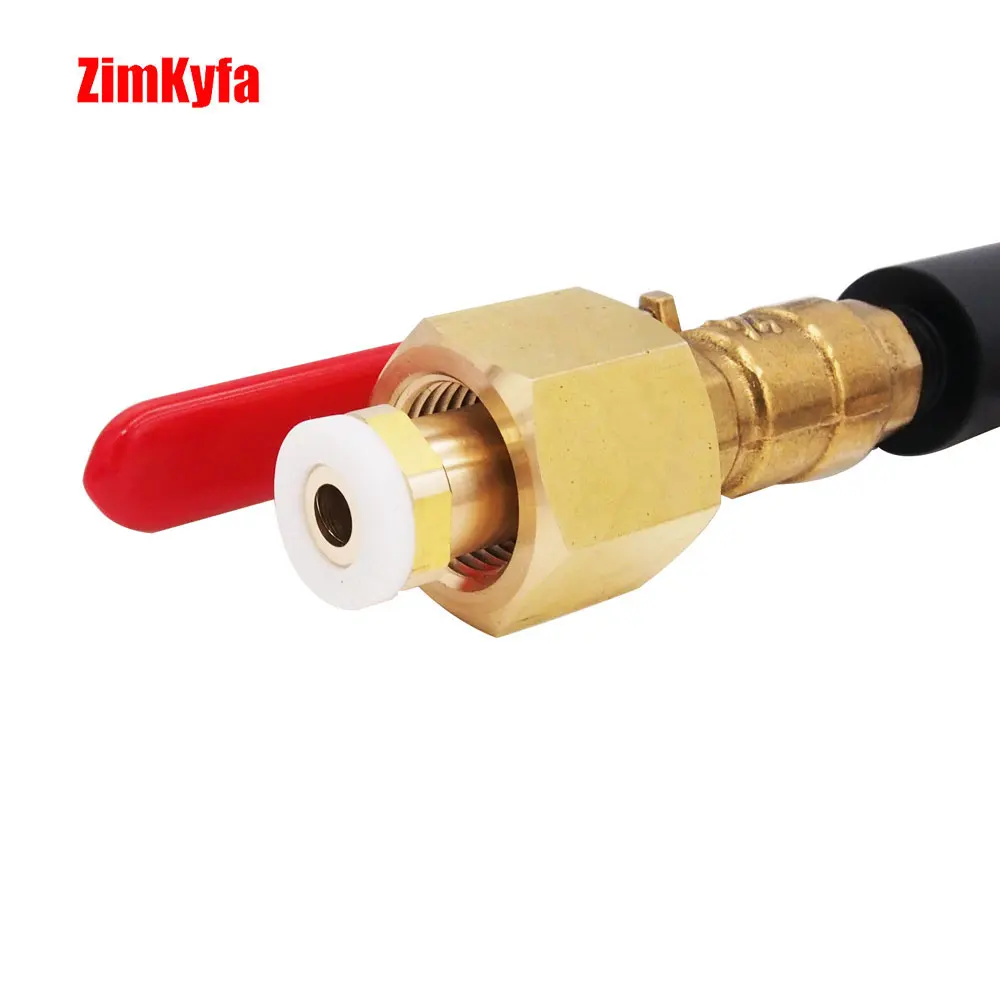

Copper connectors fit:
W21.8-14 / DIN477 / JIS m22-14connector: (KOR, JP, UK, Germany, France, Poland, Norway, Switzerland, Russia,
Ukraine, South Africa, Sweden, Chile, Czech Republic, Singapore etc..)
CGA320 connector: (USA, CAN, Brazil, Colombia, Philippines,Mexico etc..)

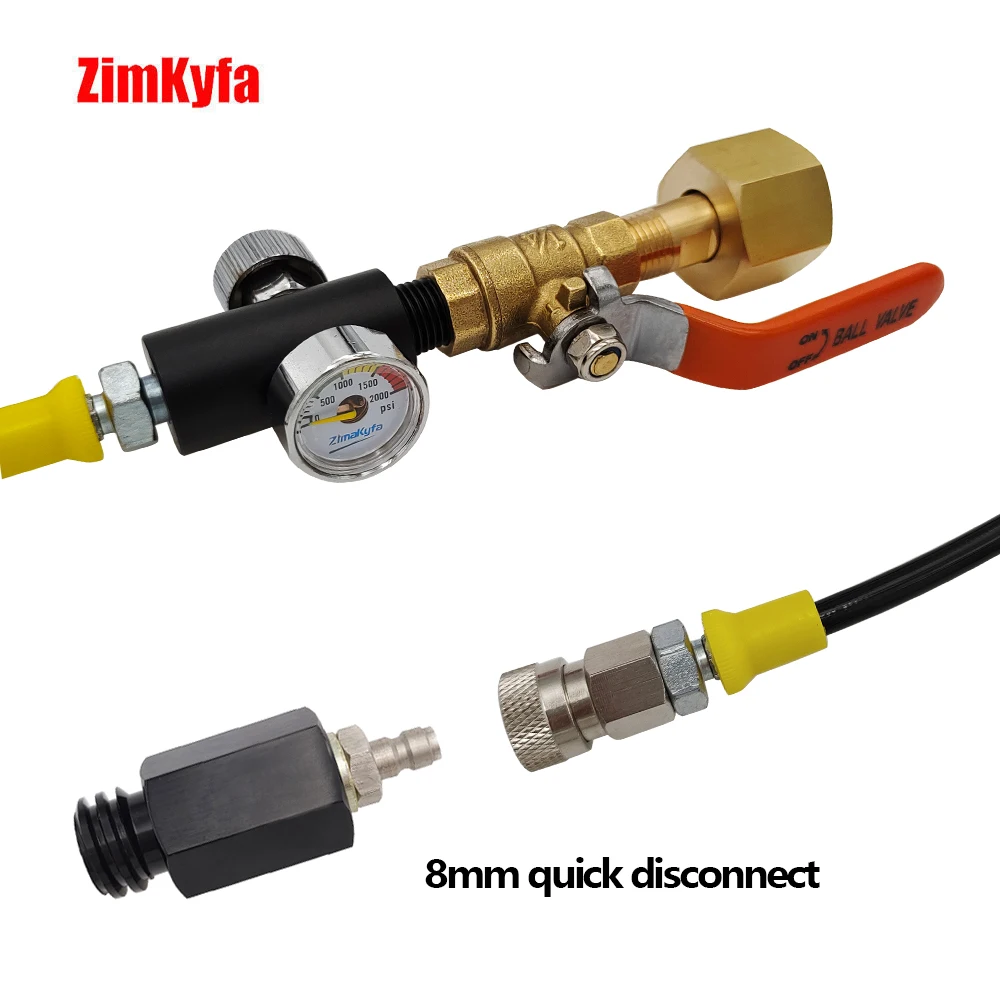

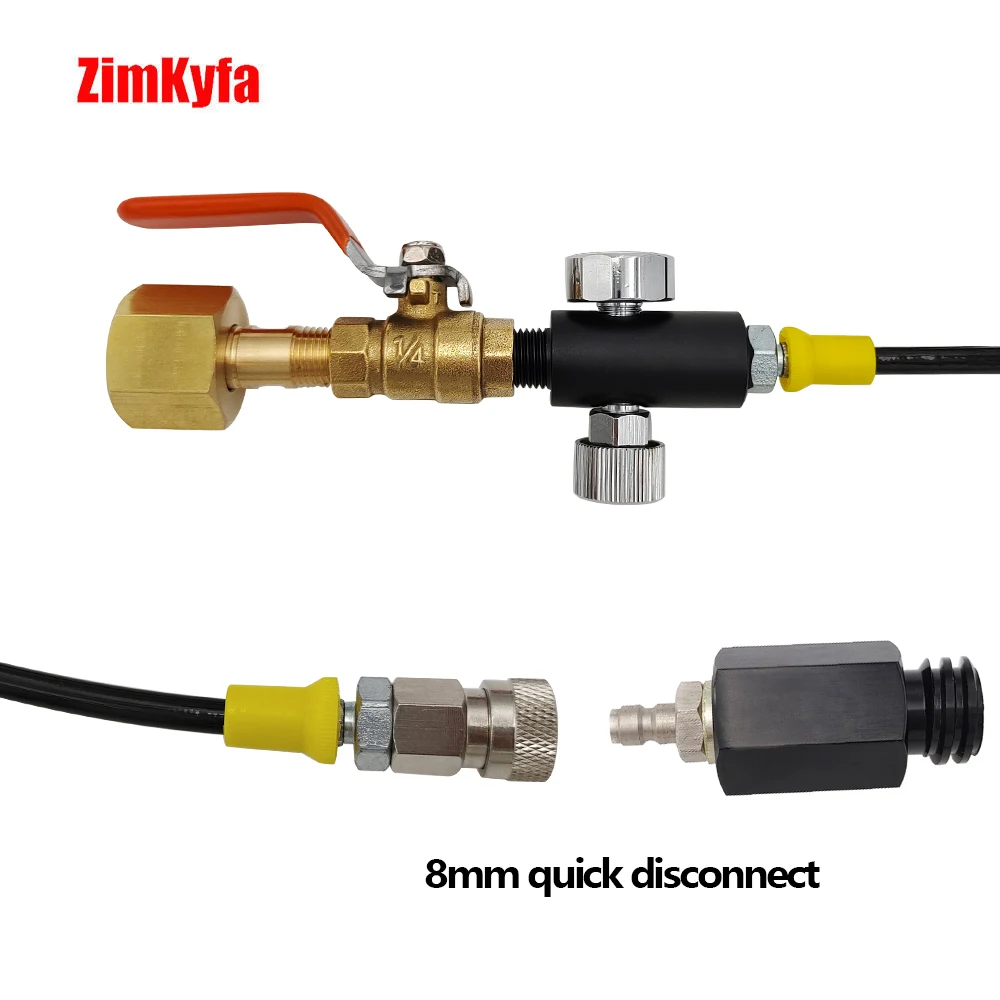

Quick disconnect adapter: Fit for DUO,Terra,Art Soda machine.
How it works?

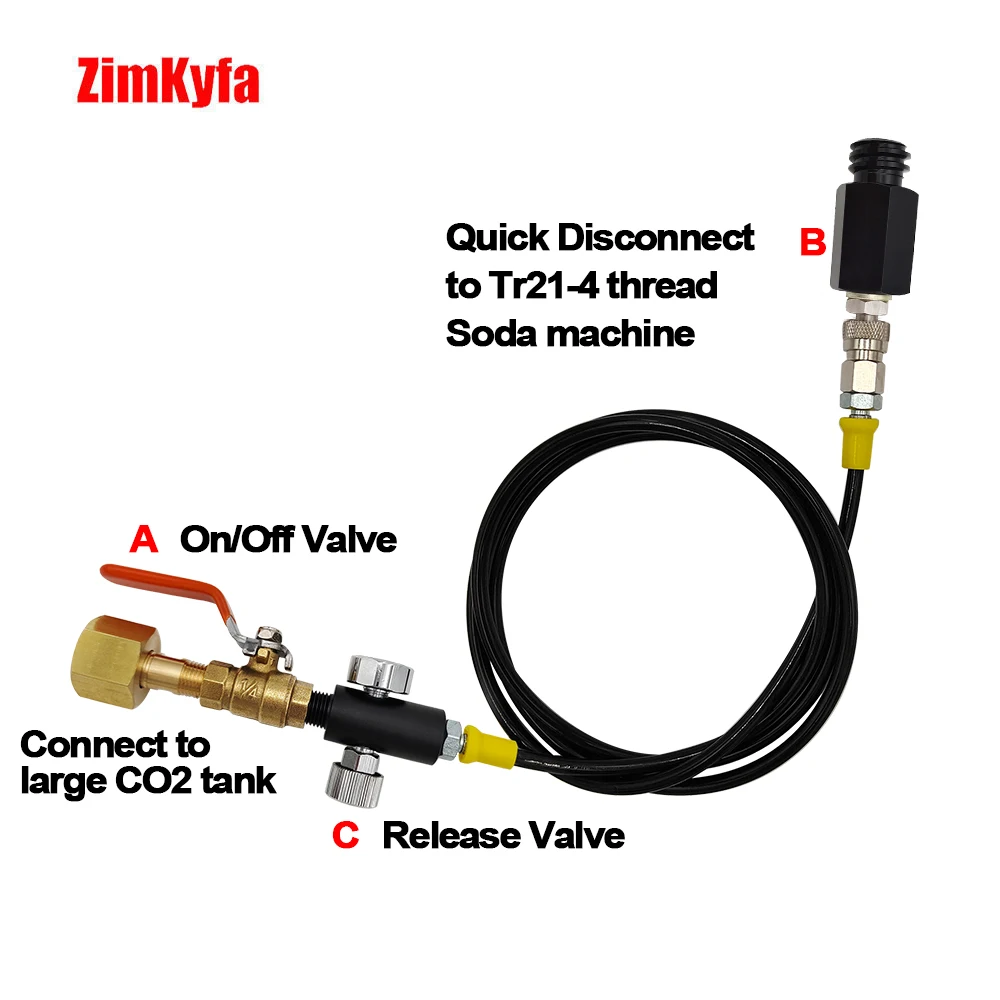

1. Make sure the ball valve A (90 degrees to the ball valve body) and release valve C are closed.
2.（ Put the gasket into the connector）Connect the connector (A end) to the large CO2 tank. (Tighten with a wrench. )
3.Place B quick disconnect adapter to your soda machine and then connect the hose.
4. Open the large Co2 tank valve.
5. Carefully turn the handle to open the ball valve A (Counterclockwise) to control the CO2 flow you need to spray into water and then you can make soda water.-Done
