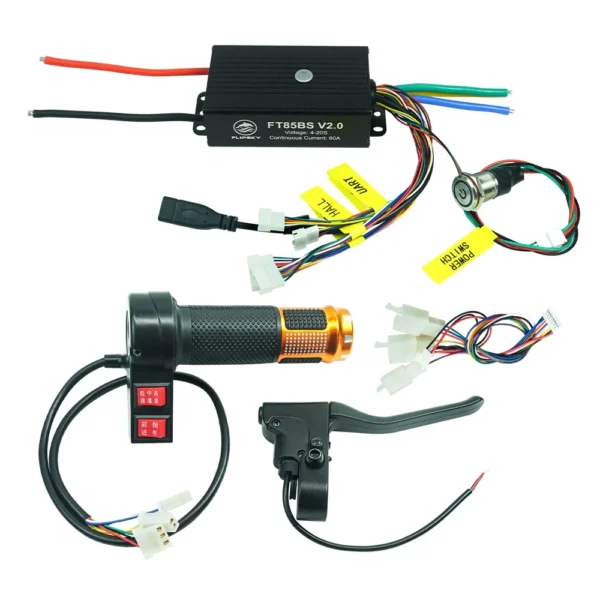

SPECIFICATIONS
Applicable People: Men
Board Category: Flat-Plate
Brand Name: NONE
High-concerned chemical: None
Origin: Mainland China
Type: Electric Skateboard
Spec:
-
Firmware supporting update via Flipsky ESC Tool
-
Voltage: 14-84V(safe for 4-20S)
-
Continuous current: 50V/60A; 75V/50A; 84V/40A (Values depend on the mounting, ambient
-
temperature and air/water circulation around the device!); Peak Current: 250A
-

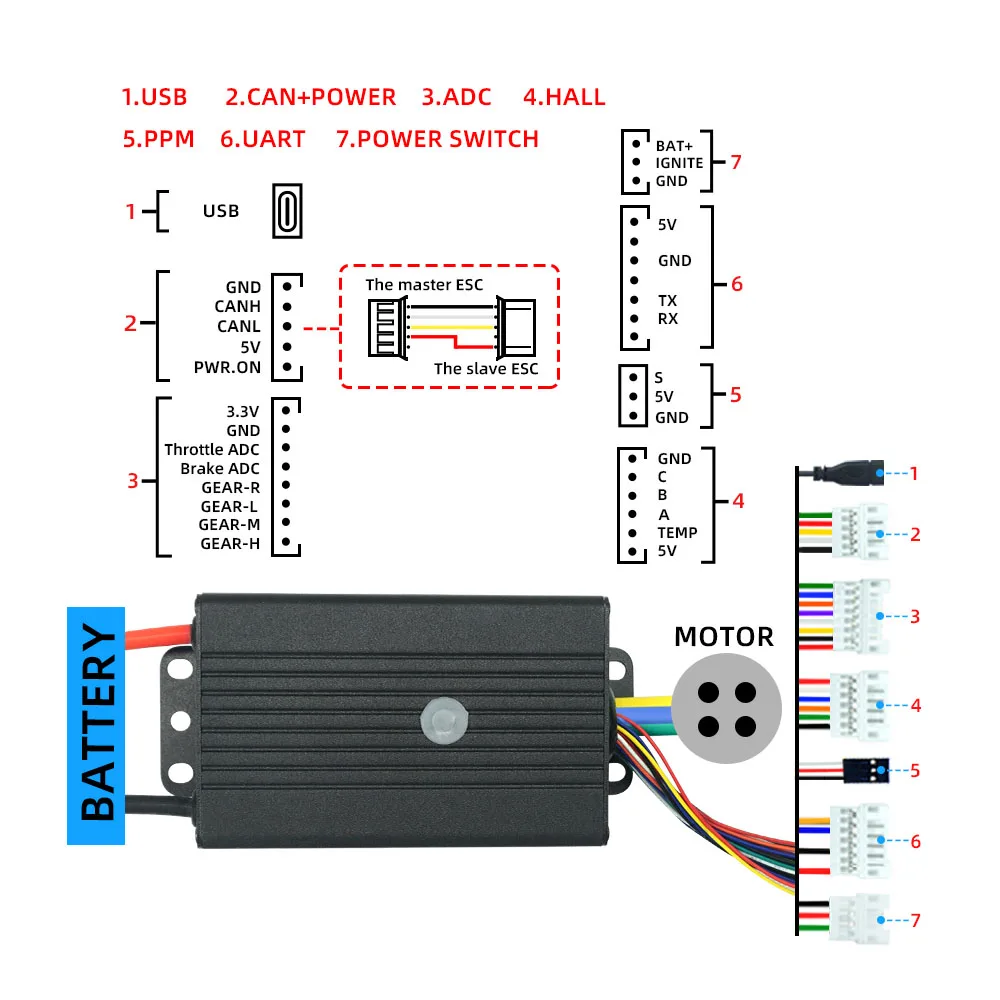

Communication Ports: USB, CAN, UART
-

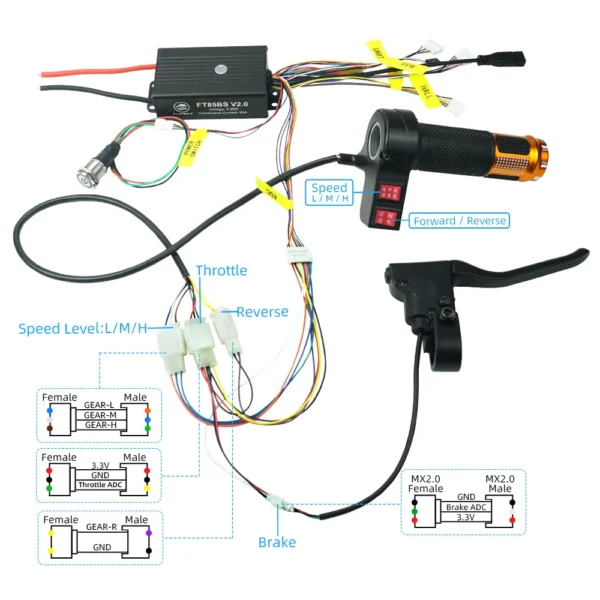

Input Signal Support: PPM, UART(compatible with FLIPSKY remote VX4 only), ADC
-
BEC: 5V@1A
-
Multiple Speed Gear levels: Low, Medium, High, Reverse
-
Motor/power wire size: 12 AWG
-
Programmable: Yes
-
Regenerative Capacity: Yes
-

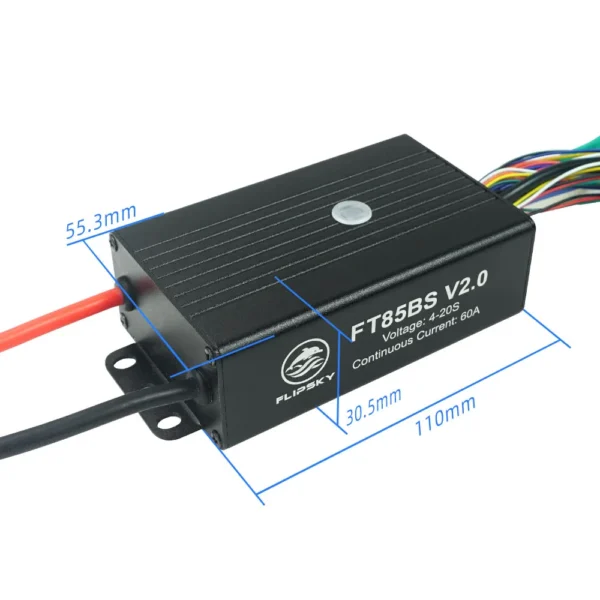

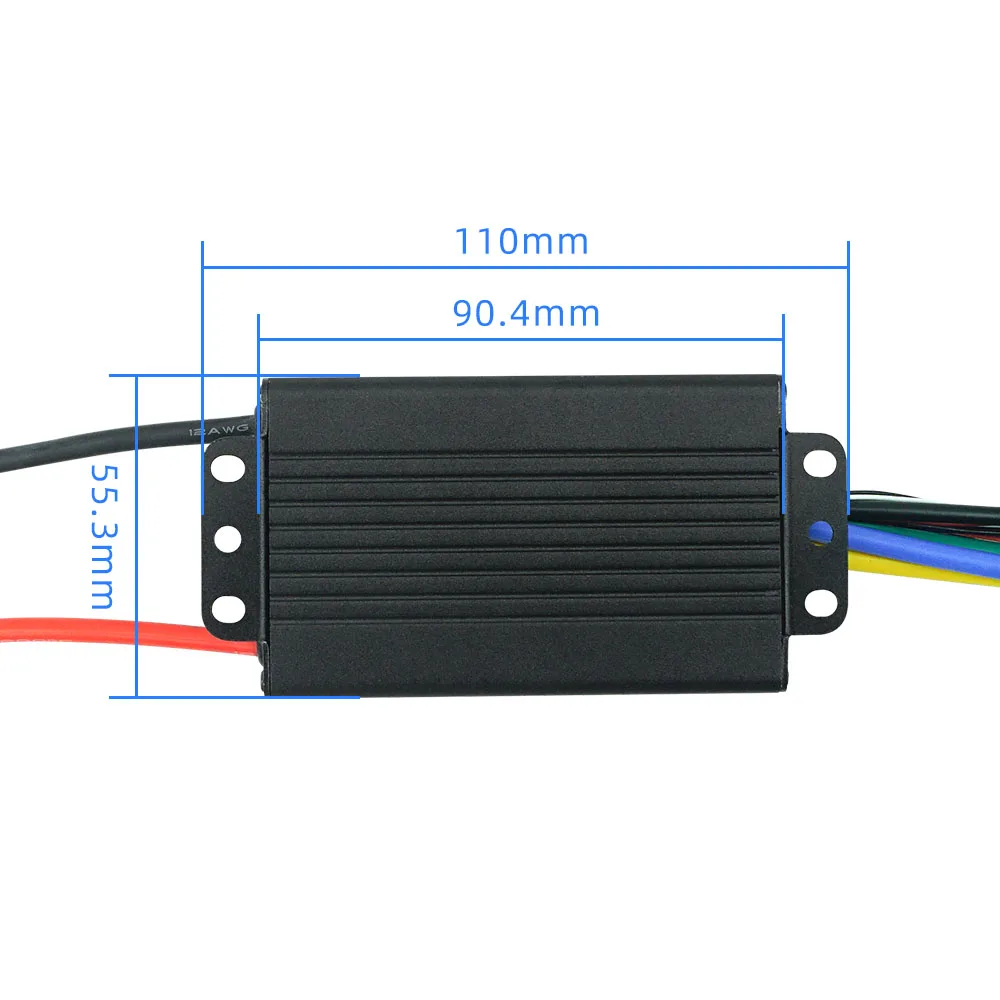

Size: L110.5*W55*H30mm(Including Alu. Case)
-
Power Switch Button: Red
Features:
-
Adopting CPU AT32F403ARCT7 with the structure of ARM Cortex-M4 allows CPU clock speed
-
240MHz and the max PWM switching frequency 45KHz, which improves the motor RPM.
-

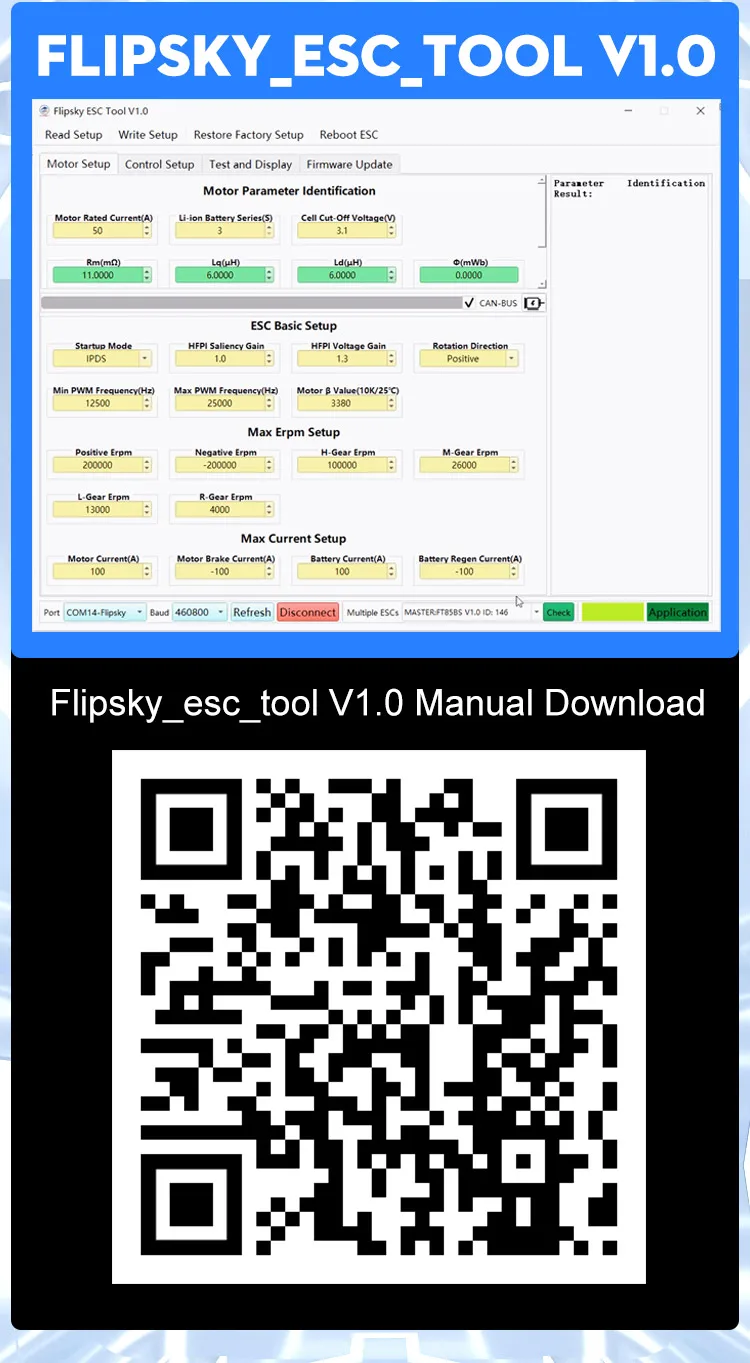

Programmable via Flipsky ESC Tool to be compatible with multi-types of motor, different battery
-
voltages and many control ways.
-

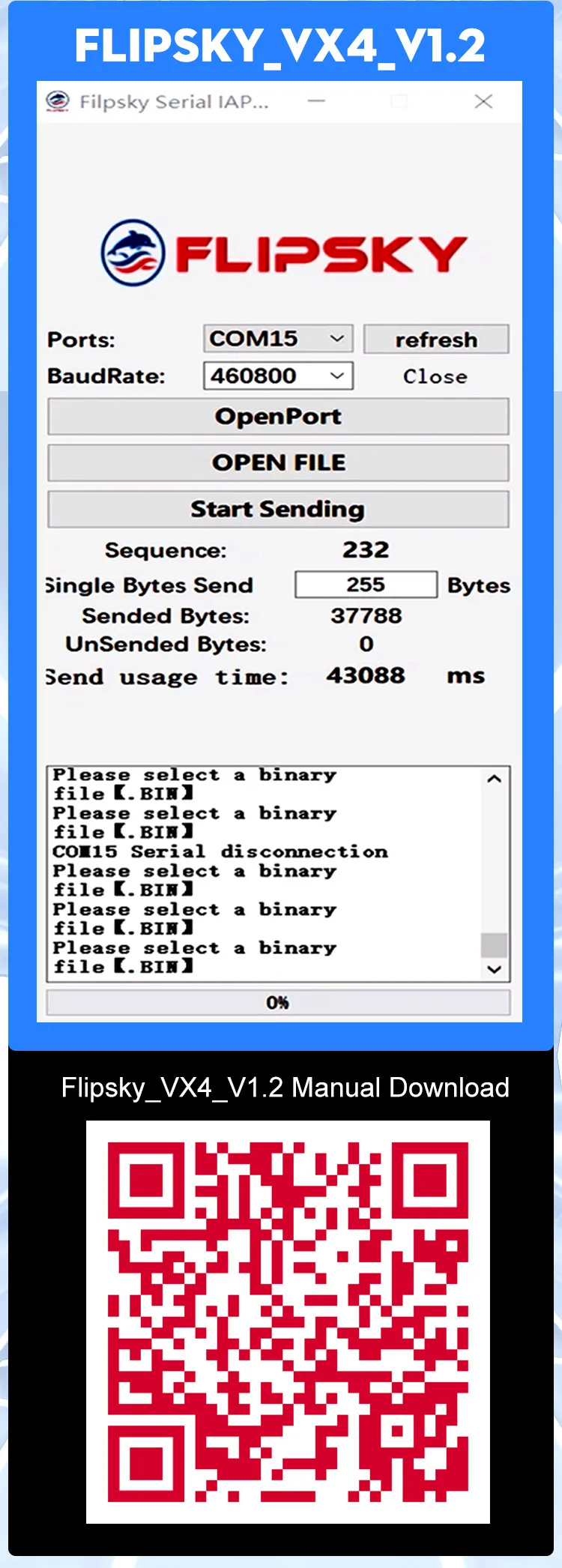

Programmable via Flipsky VX4 remote(Firmware Version:VX4_V1.2)
-
Supporting FOC with low working noise and smooth starting.
-
Supporting Real-time data and fault alerts.
-
Supporting adaptive variable PWM frequency control.
-
Supporting sensor mode(HALL) and sensorless mode(IPDS, HFPI).
-
Supporting control types: Current, Duty Cycle
-
Protection functions: low and high voltage protection, over-current protection, temperature
-
abnormally protection, mosfets over-temperature and over current protection, battery over
-
discharge protecting, motor over-temperature protection.
Application Fields:
Electric skateboard / Ebike / E-Scooter / Electric Motorc ycle / Robotics / FPV / RC Toys /Boat / Kayak etc
